Black EPS Granules: Uses, Benefits & Buying Guide

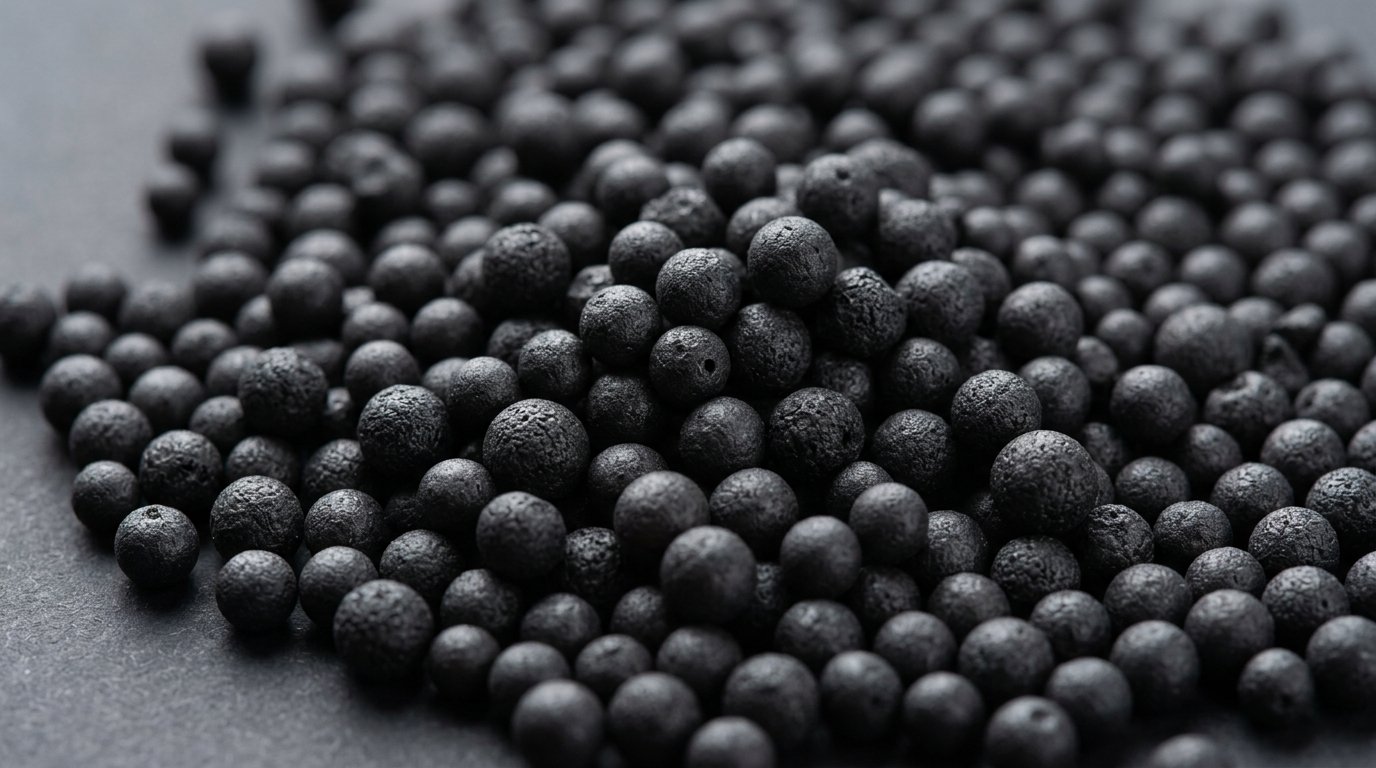

What Are Black EPS Granules?

Expanded Polystyrene (EPS) is recognized worldwide for its lightweight structure, versatility, and outstanding shock-absorbing qualities. However, modern construction and technical industries demand higher thermal resistance and enhanced material performance.

To meet these rigorous standards, manufacturers developed black EPS granules (frequently referred to as graphite EPS or grey EPS). During the polymerization process, producers infuse high-purity microscopic graphite particles directly into the polystyrene matrix.

Consequently, these microscopic graphite particles act as microscopic infrared reflectors and heat absorbers. By significantly reducing radiant heat transfer, black EPS granules deliver up to 20% to 30% greater thermal insulation efficiency compared to conventional white EPS beads.

Black EPS Granules Product Specifications

When sourcing black EPS granules in bulk, technical buyers inspect bead dimensions, pre-expansion density, pentane content, and thermal conductivity. Moreover, consistent bead distribution ensures seamless molding and uniform surface quality.

Why Choose Black EPS Granules Over White EPS?

Understanding the distinction between traditional white EPS and graphite black EPS helps processors select the optimal raw material. While standard white EPS relies solely on trapped air pockets to prevent conduction, thermal radiation still penetrates white beads.

In contrast, black EPS granules utilize graphite flakes that reflect radiant heat back towards its source. As a result, insulation boards molded from black EPS achieve equivalent or superior R-values at substantially lower panel thickness.

• Superior R-Value: Delivers approximately 20% to 30% better thermal performance at equivalent density.
• Thinner Insulation Profiles: Enables slim wall profiles, saving valuable interior floor area in architectural designs.
• Lightweight Handling: Reduces raw material consumption without sacrificing mechanical strength.
• Lower Carbon Footprint: Requires less plastic volume per square meter of finished insulation barrier.
• Cost Efficiency: Reduces heating and cooling costs across commercial and residential structures.

Therefore, engineers and green building specialists increasingly mandate black EPS for modern low-energy and Passive House construction projects.

Key Industrial Applications of Black EPS Granules

Because of their exceptional acoustic, thermal, and mechanical characteristics, black EPS granules serve diverse manufacturing sectors:

• ✅ External Thermal Insulation Composite Systems (ETICS / EIFS): Premier choice for facade insulation boards.
• ✅ Cavity Wall Insulation: Injected as free-flowing graphite beads bonded with adhesive for retrofitting existing building cavities.
• ✅ Underfloor & Roof Insulation: Resists compressive loads while preventing subterranean and radiant heat loss.
• ✅ Insulated Concrete Forms (ICF): Molded into structural interlocking building blocks for energy-efficient walls.
• ✅ Temperature-Sensitive Packaging: Fabricated into thermal shipping boxes for pharmaceuticals, vaccines, and frozen perishables.
• ✅ Lightweight EPS Concrete & Screeds: Mixed into cementitious mortars to create ultra-lightweight structural fills.
• ✅ Molded Automotive Components: Utilized in energy-absorbing bumper cores and impact-resistant vehicle cabin parts.

Furthermore, processors can tailor the expansion cycle to meet stringent density, strength, and fire-safety certifications.

Manufacturing & Processing of Black EPS Granules

Transforming unexpanded black EPS beads into precision-molded components follows a controlled multi-stage industrial process:

1. Pre-Expansion: Raw beads are heated with saturated steam inside a continuous or batch pre-expander. The pentane blowing agent vaporizes, expanding the bead volume up to 40 to 50 times.
2. Fluidized Bed Drying & Maturing: Newly expanded beads undergo gentle aeration to remove residual moisture. Afterward, beads rest in ventilated conditioning silos for 12 to 24 hours to stabilize internal pressure.
3. Shape Molding or Block Molding: Stabilized beads flow into closed steel or aluminum molds. High-pressure steam fuses the beads into rigid rectangular blocks or contoured shapes.
4. Cooling & Wire Cutting: Vacuum cooling solidifies the block, followed by computer-controlled hot wire cutting into precision boards.

Moreover, careful temperature control throughout expansion guarantees uniform graphite dispersion and maximum compressive resilience.

Quality Inspection Standards for Black EPS Granules

At Shlokar International, strict quality control procedures govern every batch of black EPS granules. We understand that downstream processing stability depends directly on raw material integrity.

Key inspection parameters include:

• ✔ Sieve Analysis: Strict screening ensures narrow particle size distribution, preventing clumping in feeding hoppers.
• ✔ Pentane Retention: Moisture-proof packaging preserves blowing agent concentration for optimal expansion ratio.
• ✔ Graphite Purity & Homogeneity: Prevents hot spots and ensures consistent lambda performance across all molded boards.
• ✔ Fusion Capability: Rigorous steam-fusion tests verify cohesive cell bonding under standard factory cycle times.
• ✔ Flame Retardant Verification: FR grade materials are evaluated for self-extinguishing behavior compliant with international fire codes.

Consequently, industrial buyers can rely on our raw materials for smooth operations and low scrap rates.

Comprehensive Buying Guide for Black EPS Granules

Procuring industrial black EPS granules requires careful coordination between your manufacturing setup and raw material specifications. To streamline your order, consider the following checklist:

• Target Density: Determine whether your final product requires low density (12–15 kg/m³) or heavy-duty density (25–30 kg/m³).
• Bead Sizing: Smaller beads (0.6–0.9 mm) are ideal for thin-wall shape molding, whereas medium beads (1.0–1.6 mm) suit large thermal blocks.
• Fire Retardancy: Specify whether your project mandates standard grade or certified Flame Retardant (FR) formulations.
• Packaging Type: Choose between standard 25 kg sealed bags, jumbo big bags, or heavy cardboard octabins with airtight foil liners.
• Order Volume & Lead Time: Plan container load quantities to optimize shipping economics and ensure uninterrupted production.

In addition, our technical consultants are always ready to provide product data sheets (PDS) and sample evaluations for trials.

Packaging & Storage Guidelines

Because unexpanded black EPS granules contain volatile pentane, proper storage protocols are essential to maintain shelf life and safety.

• • Store in cool, well-ventilated dry warehouses below 20°C (68°F) to minimize pentane evaporation.
• • Keep packages away from direct sunlight, radiant heating pipes, and open electrical sparks.
• • Maintain airtight inner foil liners until the exact moment of pre-expansion.
• • Practice First-In, First-Out (FIFO) inventory rotation to process material within recommended shelf life windows.

Moreover, following these simple guidelines safeguards expansion capabilities and maximizes production yields.

Black EPS Granules Supplier in India – Shlokar International

If you are searching for a trusted Black EPS Granules Supplier in India, Shlokar International is your dependable trading and sourcing partner. We supply premium-grade polymer raw materials to manufacturers across India, Asia, the Middle East, and global markets.

Whether your operations are located in Gujarat, Maharashtra, Rajasthan, Delhi-NCR, Tamil Nadu, Telangana, or international industrial hubs, we coordinate seamless door-to-door or port-to-port deliveries.

Our dedicated logistics specialists manage custom clearances, competitive freight rates, and on-time dispatches to ensure your assembly lines never experience downtime.

Frequently Asked Questions (FAQ) About Black EPS Granules

Q1: What is the main difference between black EPS granules and white EPS?

A: Black EPS granules contain microscopic graphite particles that reflect and absorb infrared radiant heat. Consequently, black EPS delivers approximately 20% to 30% higher thermal insulation resistance (lower thermal conductivity) compared to traditional white EPS beads.

Q2: Are black EPS granules flame retardant?

A: Yes, black EPS granules are available in specialized Flame Retardant (FR) formulations conforming to DIN 4102 B1 and EN 13501-1 Class E/B fire safety classifications.

Q3: Can black EPS granules be used in standard EPS molding machines?

A: Yes. Black EPS granules process seamlessly in modern commercial block molders and shape molding equipment. However, slight steam pressure and cycle time adjustments are recommended to optimize fusion.

Q4: What is the typical shelf life of unexpanded black EPS granules?

A: When kept in sealed, moisture-proof containers in a cool warehouse under 20°C, black EPS granules typically maintain optimal expansion properties for 3 to 6 months from the date of manufacture.

Q5: What packaging options are available for bulk orders?

A: We supply black EPS granules in 800 kg – 1,000 kg heavy-duty cardboard octabins with airtight foil liners, 1-ton jumbo bags, and 25 kg multilayer valve bags according to buyer preference.

Q6: How can I request pricing and technical data sheets?

A: You can reach out directly to Shlokar International via email, phone, or IndiaMART. Share your estimated quantity, target application, and delivery destination to receive a formal quotation and material data sheet.
